Power your EV with compact, efficient and future-ready AC and DC chargers. Designed for fast installation, stable everyday use, and seamless connectivity — from private garages to commercial sites.
Built for European conditions and real users in mind. Supported by genuine technical expertise.

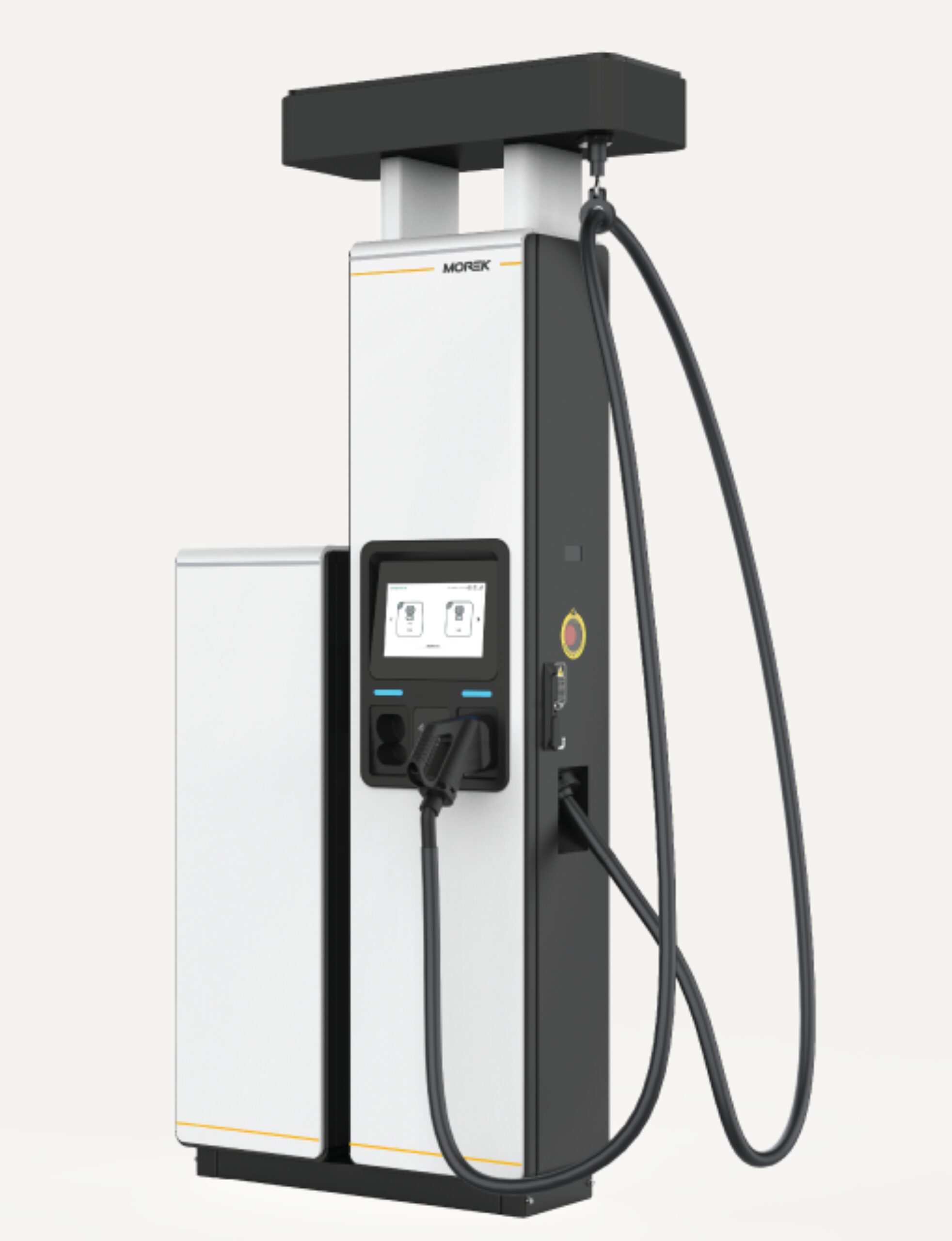

The Morek DC Stand 480 kW Charger with Liquid Cooling is a high-performance DC fast charging solution designed for high-power applications where compact design, low noise, and maximum charging current are required. Delivering ultra-fast DC charging with a wide output voltage range of 150–1000 V, the charger supports continuous high-power operation and enables efficient charging of modern electric vehicles equipped with high-capacity battery systems.
Equipped with a single CCS2 liquid-cooled connector, the charger delivers up to 500 A continuous output current, with a temporary boost of up to 600 A, ensuring fast and stable charging even at high power levels. Charging sessions can be initiated locally via button, RFID card, backend platform, or optional POS payment terminal. The liquid cooling system with oil-based cooling ensures efficient thermal management, quiet operation, and long-term reliability under demanding operating conditions.
Housed in a compact galvanized cabinet with IP54 protection and IK10 impact resistance, the charger is engineered for reliable outdoor operation in public charging locations and commercial environments. With support for OCPP 1.6J and ISO 15118 standards, the DC Stand 480 kW charger is well suited for future-ready charging infrastructures requiring high current capability, precise power control, and robust electrical protection.
Product ID: MEV500DRENN6CCSC
Key features:
The charger is designed for floor-mounted installation and features a single CCS2 liquid-cooled connector, optimized for high-current DC fast charging in compact installations. With a wide DC output voltage range of 150–1000 V and a constant power range from 300 to 1000 V, the system supports stable high-power charging across a broad spectrum of electric vehicles. The liquid (oil) cooling system enables continuous output up to 500 A, with a temporary boost of 600 A for up to 10 minutes, ensuring reliable performance during peak charging demand.
Charging sessions can be initiated locally via button, RFID card, backend platform control, or optional POS payment terminal, making the charger suitable for both public charging locations and controlled commercial environments. Communication via Ethernet and support for OCPP 1.6J enable seamless backend integration for monitoring, control, diagnostics, and charging session management. Compliance with ISO 15118 and DIN 70121 ensures readiness for modern and future smart charging use cases.
Engineered for demanding outdoor operation, the charger features IP54 ingress protection and IK10 impact resistance (IK08 for the display). The compact cabinet design minimizes footprint while maintaining robust mechanical strength. Liquid cooling ensures efficient thermal management with low operating noise ≤55 dB, making the charger suitable for noise-sensitive environments.
Comprehensive electrical protection includes current leakage protection, output over-voltage protection, circuit protection, and over-current protection, ensuring safe and reliable operation under all operating conditions. The charger is designed to operate reliably in ambient temperatures from –25 °C to +55 °C, with relative humidity up to 95% non-condensing.
✓ Easy Installation (Plug-and-Play)
Supports both single-phase and three-phase setups. Compact enclosure suitable for wall or pedestal mounting.
✓ Secure Access with RFID
Ideal for offices, apartment buildings, rental properties, and commercial parking areas.
✓ Smart Connectivity (App / WiFi / Ethernet / OCPP 1.6)
Monitor energy usage, set schedules, limit power, or integrate the charger into ANY OCPP-based management platform.
✓ Robust Safety & Durability
Built-in RCD functionality, over-voltage and over-temperature protection, and weatherproof design for long outdoor lifetime.
✓ Excellent Price-to-Performance Ratio
A professional-grade AC charger that remains affordable without compromising stability or long-term reliability.
Yes — it is compatible with all European EVs using the Type 2 standard.
Yes — 11 kW and 22 kW models require a 3-phase power supply.
Yes — OCPP 1.6 support ensures interoperability with most European platforms.
Yes. The MEV charger supports basic Dynamic Load Management using a single external CT clamp connected to the main phase.
This ensures the charger automatically adjusts its charging power so the building’s main fuse is not overloaded.
