Power your EV with compact, efficient and future-ready AC and DC chargers. Designed for fast installation, stable everyday use, and seamless connectivity — from private garages to commercial sites.
Built for European conditions and real users in mind. Supported by genuine technical expertise.

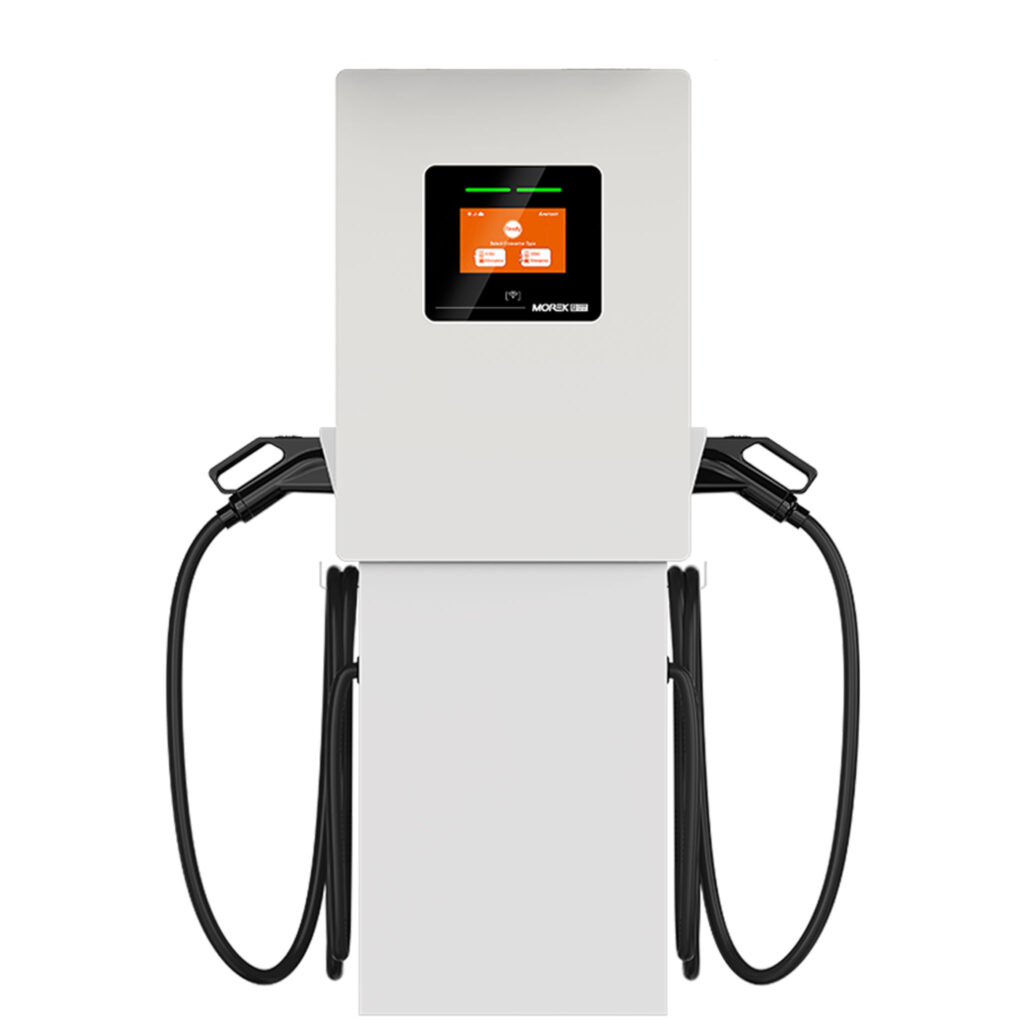

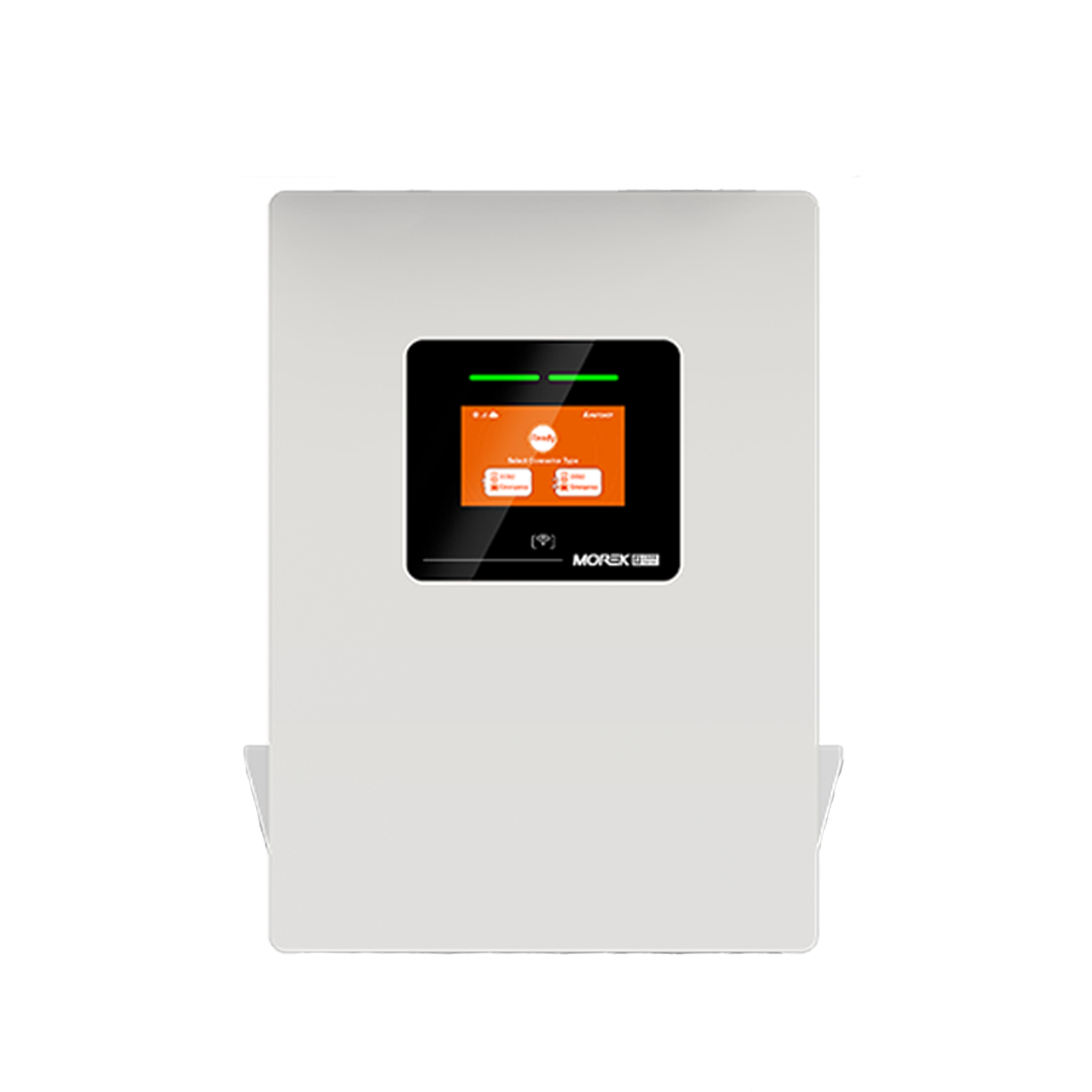

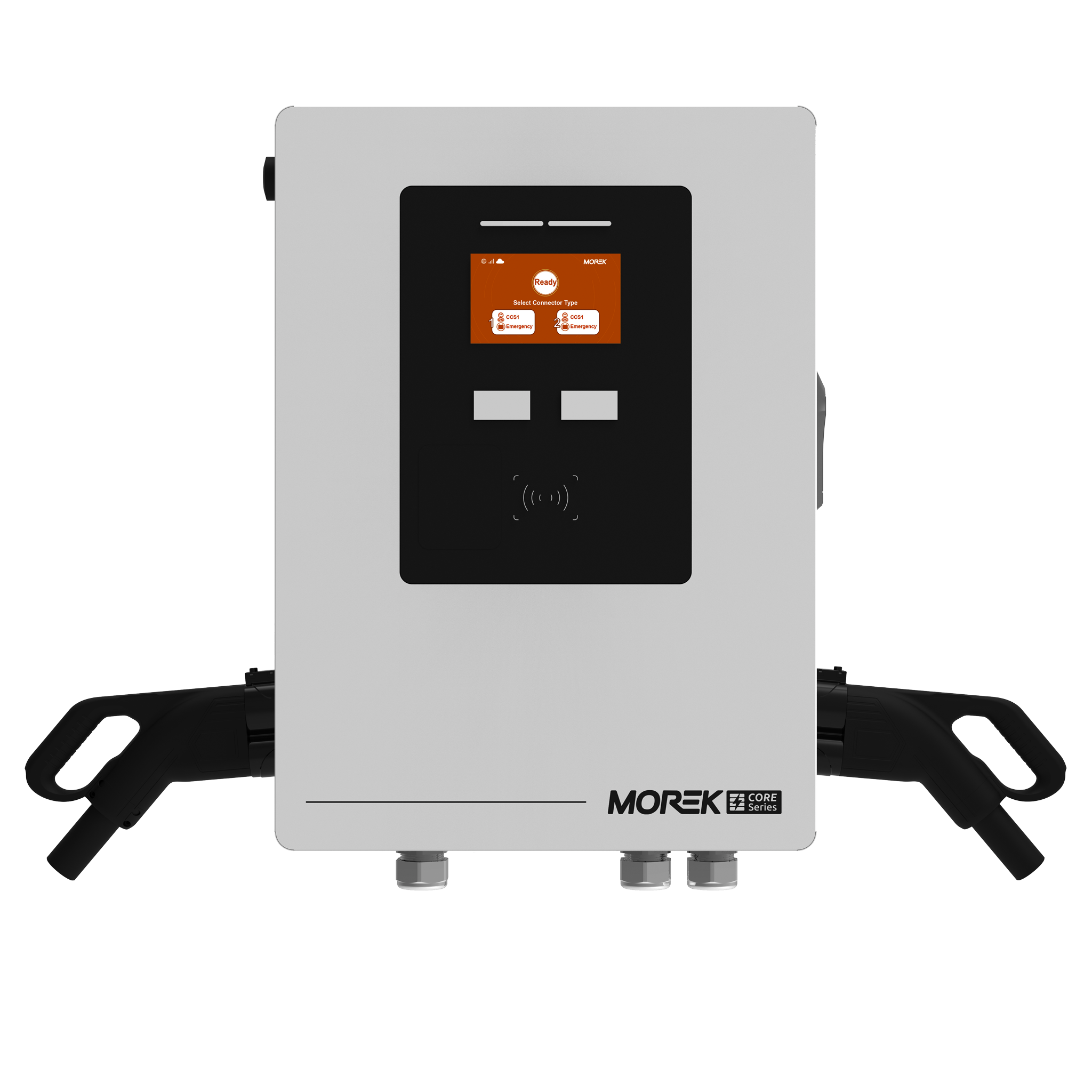

The Morek DC Core-series 60 kW Charger is a high-performance, safe, and reliable DC fast charging solution designed for demanding commercial and semi-public environments. With higher output power and dual-vehicle charging capability, it provides efficient DC charging while allowing real-time monitoring of charging status and progress.

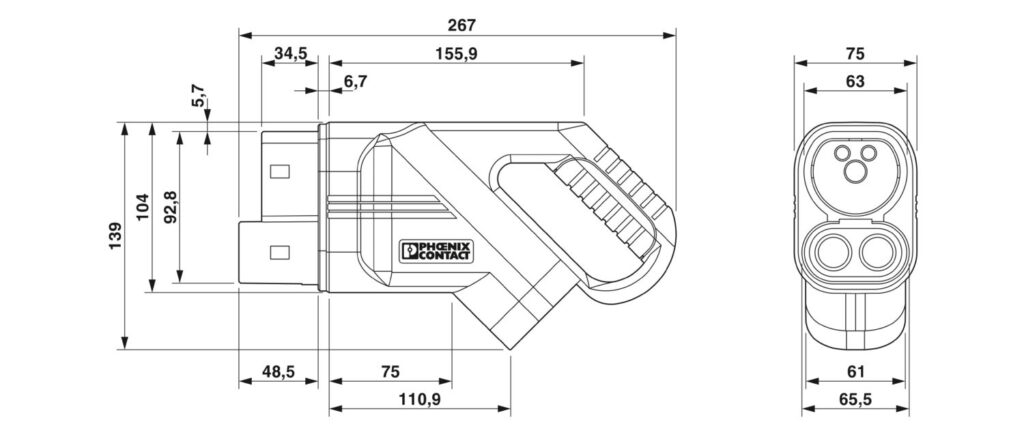

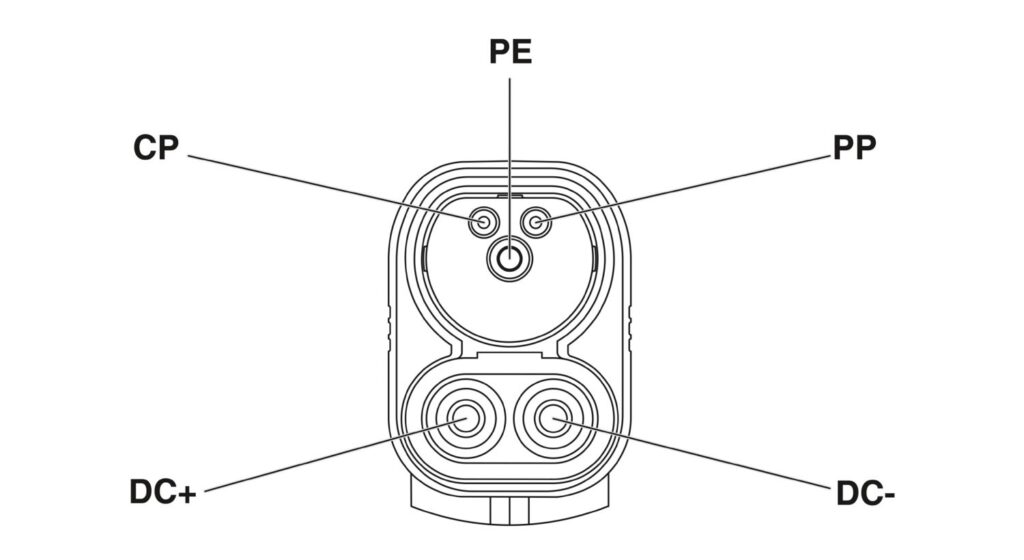

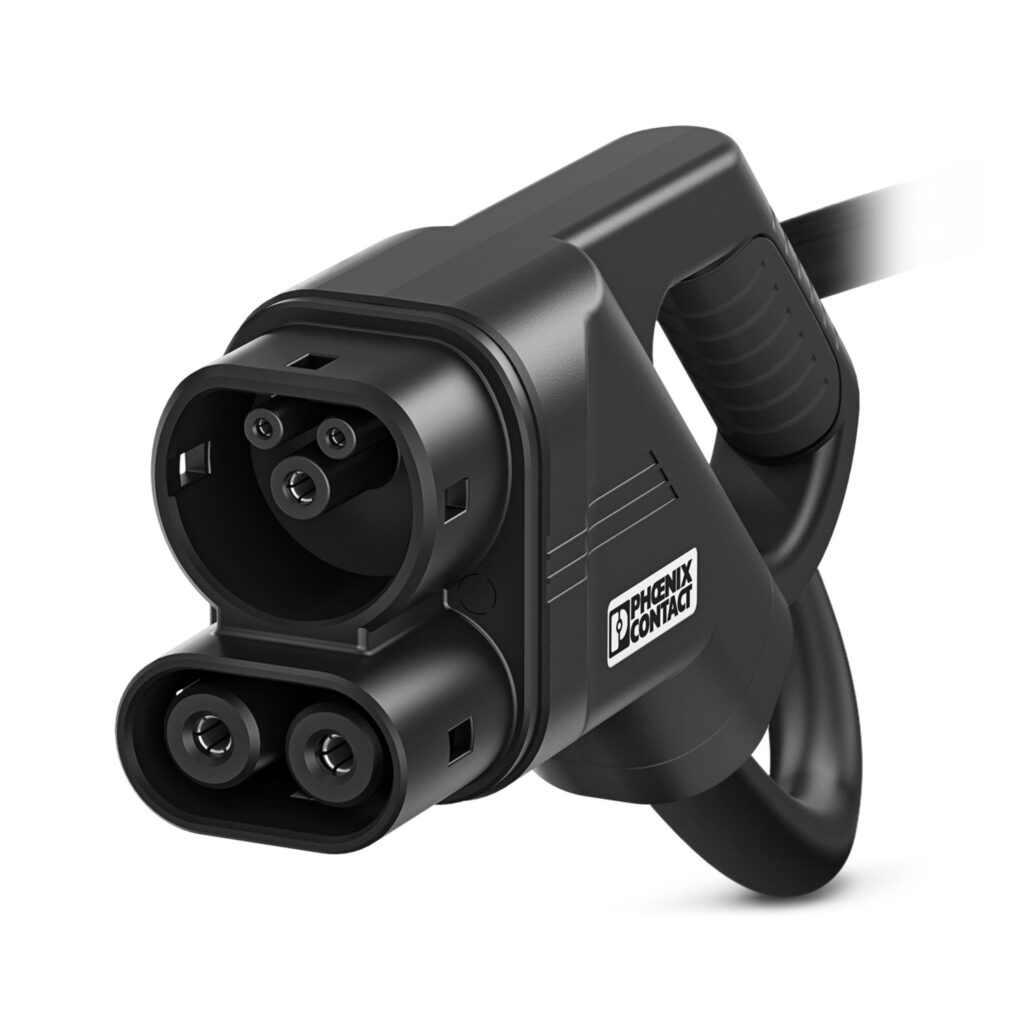

Equipped with two CCS2 connectors and 5 m Phoenix Contact charging cables, the charger supports flexible charging control via RFID cards, web app, user app, QR code, or manual start. The integrated 7-inch touchscreen HMI ensures intuitive operation and clear visibility of charging data, making it well suited for shared charging locations and fleet applications.
Built with a robust steel enclosure and advanced electrical protection, the DC Core 60 kW charger is ideal for fleet depots, parking facilities, logistics hubs, and workplaces requiring higher DC charging power in a compact and controlled form factor.
Product ID: MEV60DRENG5CCSP
Key features:
The charger is designed for wall-mounted or stand-mounted installation and features two CCS2 connectors with integrated 5 m charging cables. Integrated power distribution enables efficient energy allocation between two simultaneously connected vehicles. Charging sessions can be initiated via RFID cards, web app, user app, QR code, or manual start directly from the touchscreen HMI.
Connectivity via LAN and 4G, combined with OCPP 1.6J protocol support, enables backend integration for monitoring, diagnostics, and charger management. Contactless interoperability is supported through ISO/IEC 14443 A/B standards, including MIFARE. The 7-inch touchscreen HMI provides clear real-time visibility of charging progress, output power, and session status.
Designed for demanding operating conditions, the charger features IP54 protection and IK10 impact resistance, housed in a galvanized and painted steel enclosure. Smart air cooling ensures efficient thermal management with low operating noise below 55 dB. Integrated electrical protection includes over- and under-voltage, over-current, over-temperature, surge protection, short-circuit protection, grounding protection, relay welding detection, control pilot fault detection, and DC residual current protection (6 mA).
Dynamic Load Management (DLM) is available and supports up to 11 chargers, enabling optimized power distribution and efficient use of available grid capacity. Power limiting functionality further supports grid-friendly operation in constrained electrical infrastructures.
✓ Easy Installation (Plug-and-Play)
Supports both single-phase and three-phase setups. Compact enclosure suitable for wall or pedestal mounting.
✓ Secure Access with RFID
Ideal for offices, apartment buildings, rental properties, and commercial parking areas.
✓ Smart Connectivity (App / WiFi / Ethernet / OCPP 1.6)
Monitor energy usage, set schedules, limit power, or integrate the charger into ANY OCPP-based management platform.
✓ Robust Safety & Durability
Built-in RCD functionality, over-voltage and over-temperature protection, and weatherproof design for long outdoor lifetime.
✓ Excellent Price-to-Performance Ratio
A professional-grade AC charger that remains affordable without compromising stability or long-term reliability.
Yes — it is compatible with all European EVs using the Type 2 standard.
Yes — 11 kW and 22 kW models require a 3-phase power supply.
Yes — OCPP 1.6 support ensures interoperability with most European platforms.
Yes. The MEV charger supports basic Dynamic Load Management using a single external CT clamp connected to the main phase.
This ensures the charger automatically adjusts its charging power so the building’s main fuse is not overloaded.
We offer fast delivery, competitive pricing, and expert technical support and consultation. Morek provides comprehensive products with solutions that ensure smooth installation and convenient usage.
Contact us to become our partner and enjoy all the benefits we offer.
