Power your EV with compact, efficient and future-ready AC and DC chargers. Designed for fast installation, stable everyday use, and seamless connectivity — from private garages to commercial sites.
Built for European conditions and real users in mind. Supported by genuine technical expertise.

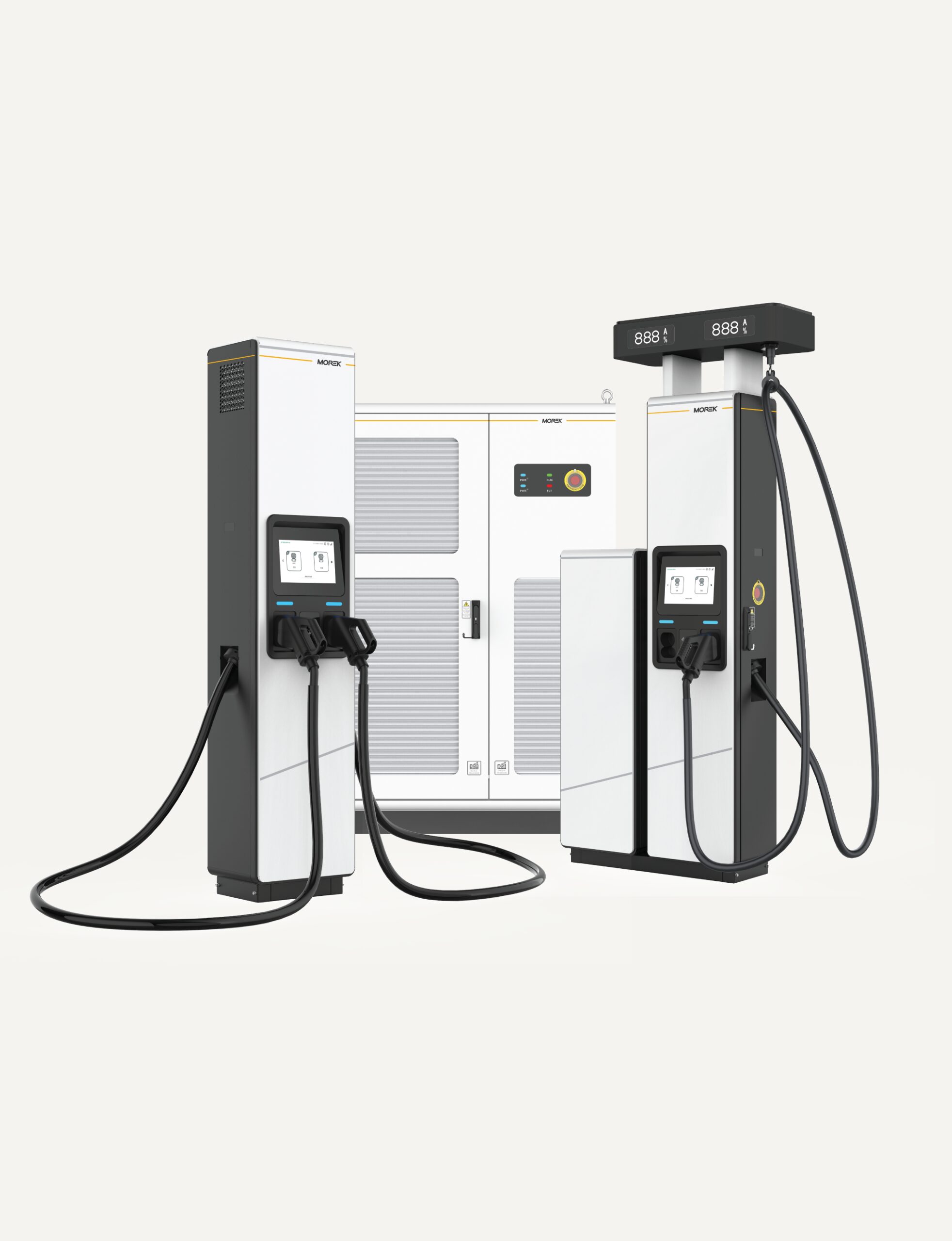

The Morek DC Satellite Charging Hub 480 kW is a high-capacity DC charging solution designed for public charging networks and heavy commercial vehicle fleet depots requiring scalable and efficient power distribution. Utilizing Morek’s advanced power-sharing technology, the hub dynamically allocates available power across multiple connectors, minimizing idle capacity while meeting diverse vehicle charging demands. With a total output of up to 480 kW and support for parallel operation up to 960 kW, it delivers a flexible and future-ready fast charging infrastructure.
Equipped with CCS2 connectors and optional liquid-cooled HPC connectors, the system supports charging currents of up to 300 A for standard CCS and up to 500 A for HPC applications. Charging sessions can be initiated via RFID cards, web app, user app, QR code, Autocharge, or manual start, while integrated credit card payment terminals enable direct public charging use cases. The 10-inch touchscreen provides clear visibility of charging status and intuitive interaction, complemented by an ergonomic cable management system for high-traffic locations.
Built with a robust galvanized steel enclosure, IP54 protection, IK10 impact resistance, and comprehensive electrical protection, the Satellite Charging Hub is engineered for continuous operation in demanding outdoor environments. It is ideally suited for large-scale public charging sites, logistics hubs, and fleet depots where high power availability, scalability, and efficient energy utilization are essential.
Product ID: MEV480NENNNXPOW
Key features:
The charging hub is designed for floor-mounted installation and utilizes a satellite architecture that enables efficient power sharing across multiple charging points. The central power cabinet delivers up to 480 kW DC output and dynamically distributes power to connected satellites, minimizing idle capacity and optimizing utilization across the site. The system supports both standard CCS2 connectors and optional liquid-cooled HPC connectors, allowing charging currents of up to 300 A for CCS and up to 500 A for HPC applications. Parallel connection of power cabinets enables scalable installations with total charging capacity of up to 960 kW.
Charging sessions can be initiated via RFID cards, web app, user app, QR code, Autocharge, or manual start, making the hub suitable for both public and fleet-based charging scenarios. Integrated credit card payment terminal support enables direct payment at the charging point for public charging networks. Connectivity via Ethernet LAN and 4G, combined with OCPP 1.6J communication protocol and compliance with ISO 15118 / DIN 70121 standards, allows seamless backend integration for monitoring, control, diagnostics, and smart charging services.
The system features a 10-inch LCD touchscreen that provides clear real-time information on charging status, power allocation, and session progress. Ergonomic cable management and plug holders ensure safe and convenient handling in high-traffic environments. The charging hub is housed in a robust galvanized steel enclosure with IP54 ingress protection and IK10 impact resistance, ensuring reliable operation in demanding outdoor conditions.
Engineered for continuous commercial operation, the system incorporates forced air cooling for standard CCS configurations and liquid cooling for HPC connectors, enabling efficient thermal management at high power levels. Comprehensive electrical protection includes over- and under-voltage protection, over-temperature protection, leakage detection, and protective earth grounding. Dynamic Load Management (DLM) is available to optimize grid capacity when deploying large-scale multi-charger installations.
✓ Easy Installation (Plug-and-Play)
Supports both single-phase and three-phase setups. Compact enclosure suitable for wall or pedestal mounting.
✓ Secure Access with RFID
Ideal for offices, apartment buildings, rental properties, and commercial parking areas.
✓ Smart Connectivity (App / WiFi / Ethernet / OCPP 1.6)
Monitor energy usage, set schedules, limit power, or integrate the charger into ANY OCPP-based management platform.
✓ Robust Safety & Durability
Built-in RCD functionality, over-voltage and over-temperature protection, and weatherproof design for long outdoor lifetime.
✓ Excellent Price-to-Performance Ratio
A professional-grade AC charger that remains affordable without compromising stability or long-term reliability.
Yes — it is compatible with all European EVs using the Type 2 standard.
Yes — 11 kW and 22 kW models require a 3-phase power supply.
Yes — OCPP 1.6 support ensures interoperability with most European platforms.
Yes. The MEV charger supports basic Dynamic Load Management using a single external CT clamp connected to the main phase.
This ensures the charger automatically adjusts its charging power so the building’s main fuse is not overloaded.
We offer fast delivery, competitive pricing, and expert technical support and consultation. Morek provides comprehensive products with solutions that ensure smooth installation and convenient usage.
