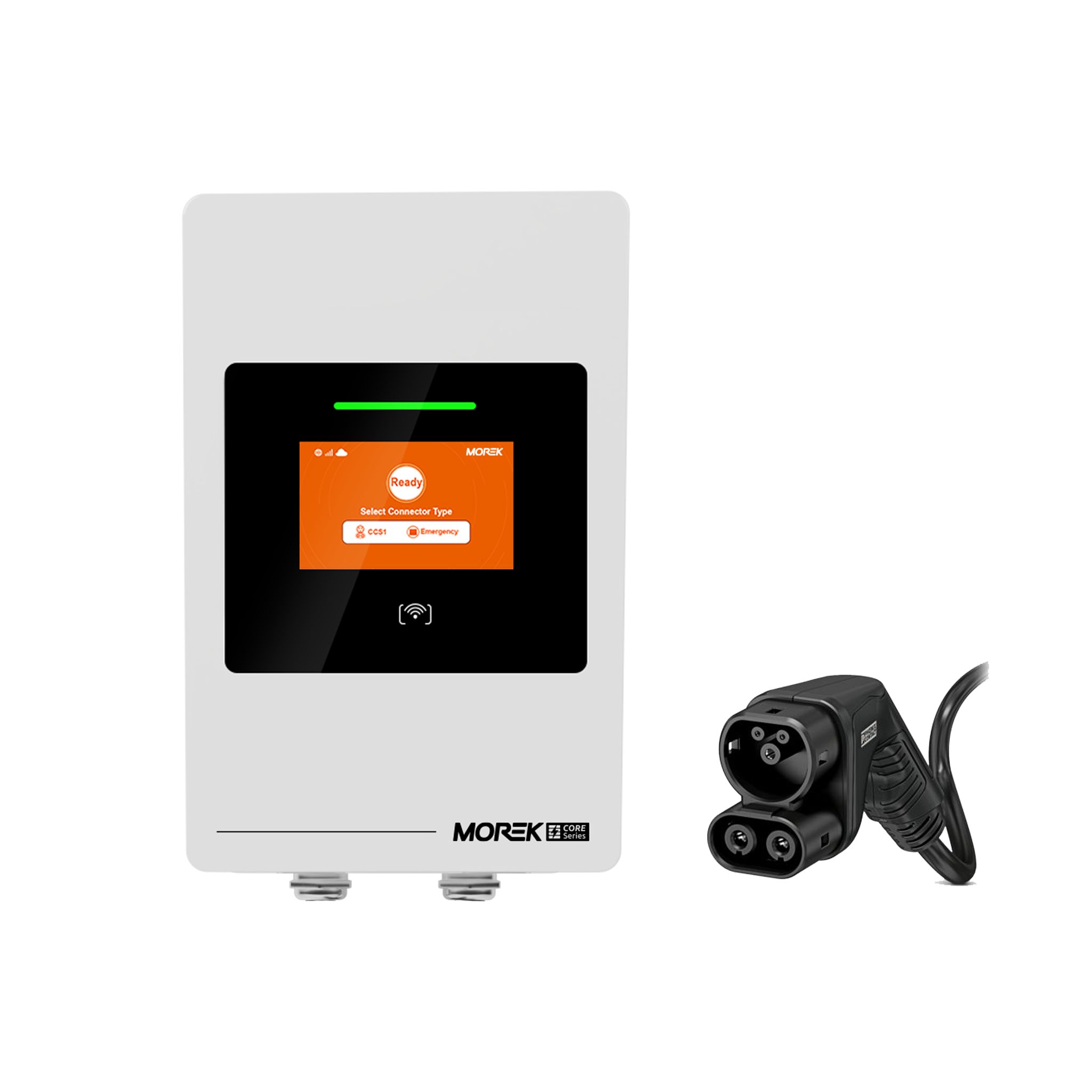

The Morek DC Core-series 30 kW Charger is a safe, reliable, and efficient DC charging solution designed for everyday commercial and semi-public charging applications. It delivers stable DC fast charging while allowing users and operators to monitor real-time charging status and progress via an intuitive user interface.

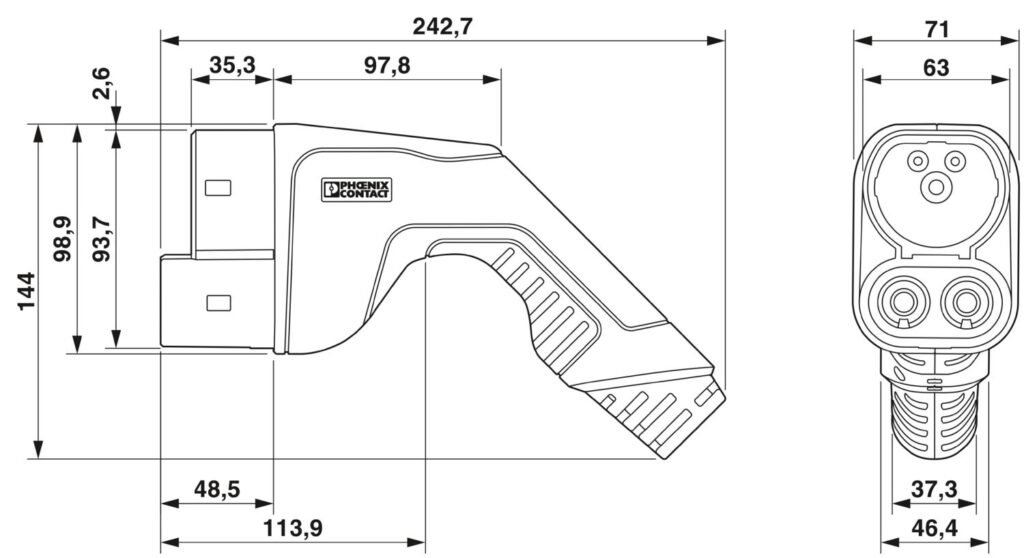

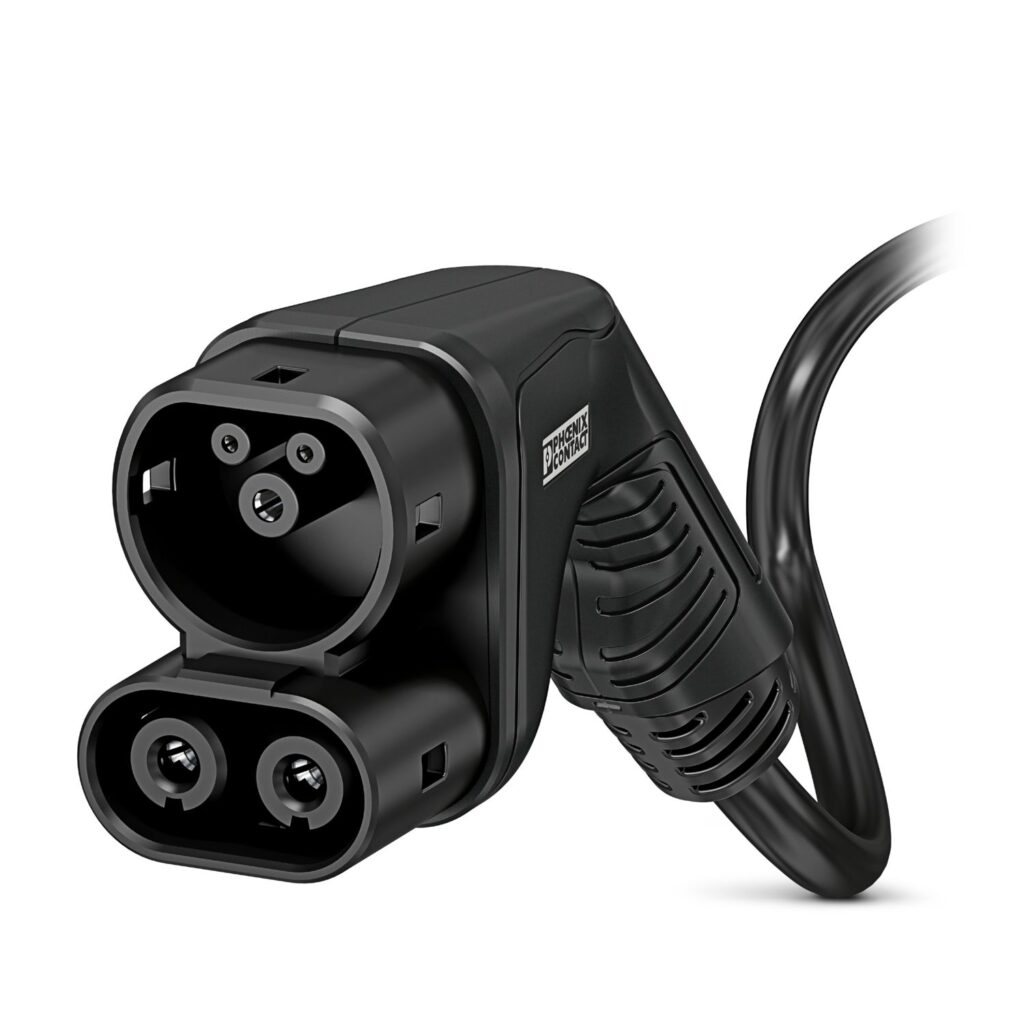

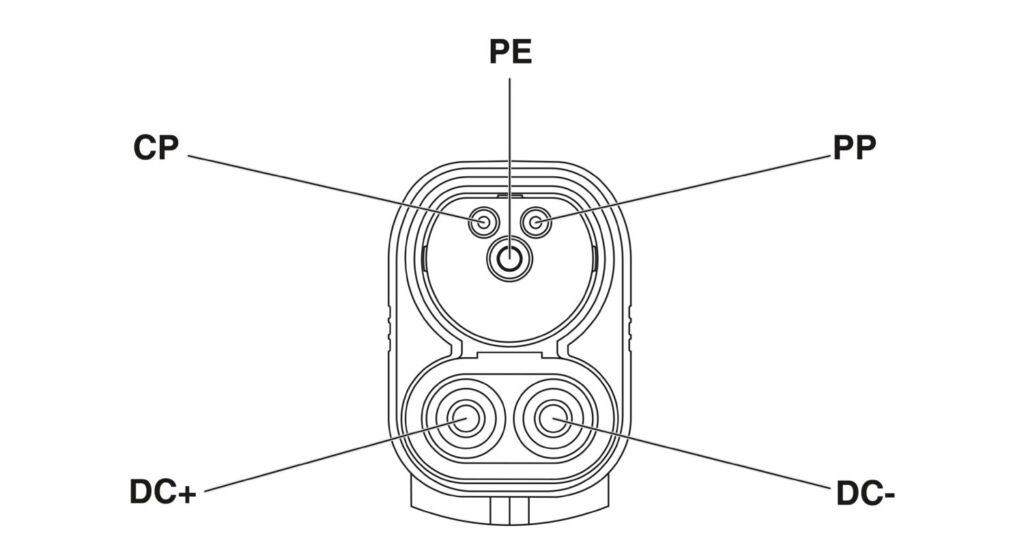

Equipped with a CCS2 connector and a 5 m Phoenix Contact charging cable, the charger supports multiple charging control options including RFID cards, web app, user app, QR code, and manual start. A 7-inch touchscreen HMI provides clear visibility of charging data, ensuring a smooth and user-friendly charging experience.
Built with a robust steel enclosure and advanced electrical protection, the DC Core 30 kW charger offers dependable performance for workplaces, parking facilities, fleet depots, and other locations requiring compact DC charging with smart control capabilities.
Product ID: MEV30DRENG5CCSP
Key features:

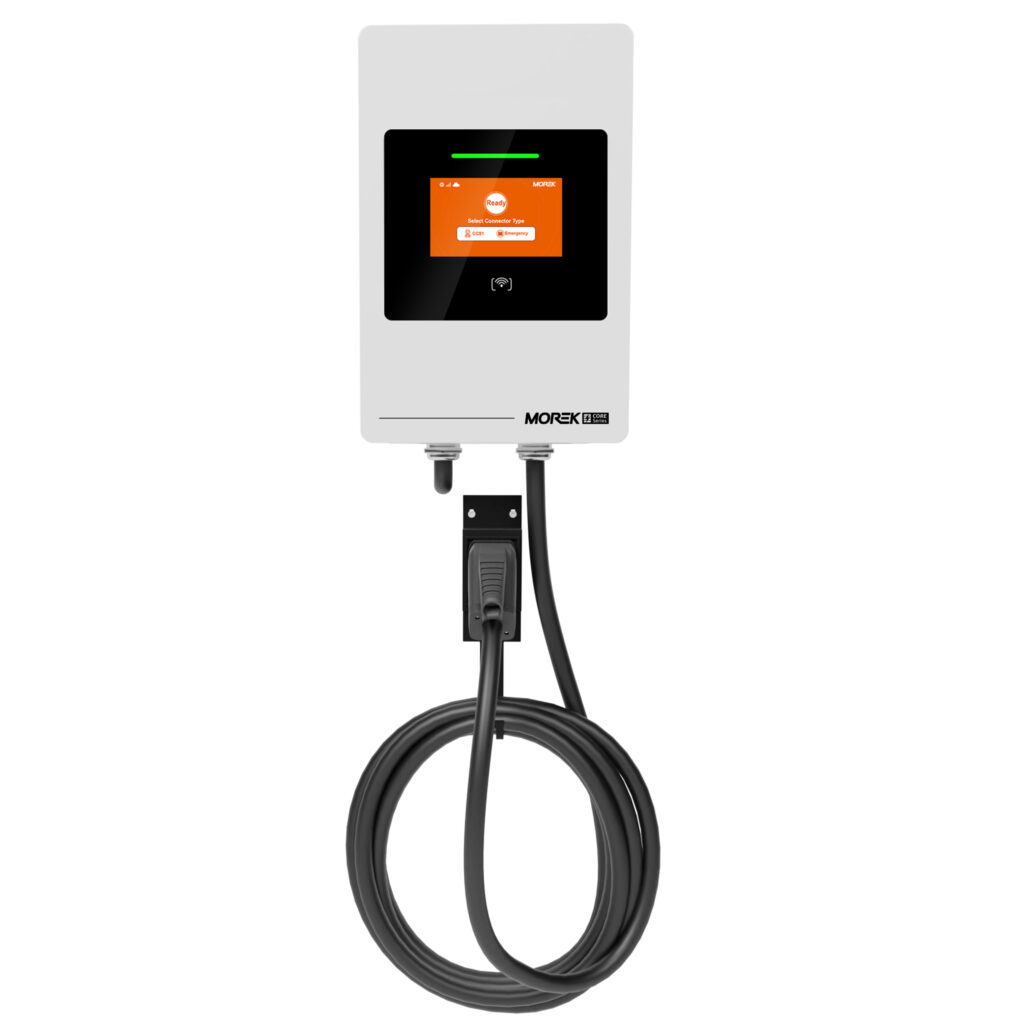

The charger is designed for wall- or stand-mounted installation and features a single CCS2 connector with a 5 m charging cable. Charging sessions can be initiated and controlled via RFID cards, web app, user app, QR code, or manual start directly on the touchscreen HMI. Contactless interoperability is supported via ISO/IEC 14443 A/B standards, including MIFARE.
Connectivity options include LAN and 4G, with OCPP 1.6J protocol support enabling backend integration for monitoring and management. The integrated 7-inch touchscreen provides real-time visibility of charging status, power output, and session progress, ensuring intuitive operation for both users and operators.
Engineered for reliable operation, the charger features IP54 protection and IK10 impact resistance, combined with a galvanized and painted steel enclosure. Smart air cooling ensures efficient thermal management with low noise levels below 55 dB. Integrated electrical protections include over- and under-voltage, over-current, over-temperature, surge protection, short-circuit protection, grounding protection, and DC residual current detection (6 mA).
Dynamic Load Management (DLM) is available, supporting up to 11 chargers, enabling efficient power distribution and optimized use of available grid capacity.
✓ Easy Installation (Plug-and-Play)
Supports both single-phase and three-phase setups. Compact enclosure suitable for wall or pedestal mounting.
✓ Secure Access with RFID
Ideal for offices, apartment buildings, rental properties, and commercial parking areas.
✓ Smart Connectivity (App / WiFi / Ethernet / OCPP 1.6)
Monitor energy usage, set schedules, limit power, or integrate the charger into ANY OCPP-based management platform.
✓ Robust Safety & Durability
Built-in RCD functionality, over-voltage and over-temperature protection, and weatherproof design for long outdoor lifetime.
✓ Excellent Price-to-Performance Ratio
A professional-grade AC charger that remains affordable without compromising stability or long-term reliability.
Yes — it is compatible with all European EVs using the CCS2 standard.
Yes — the charger supports both wall-mounted and pedestal installations, allowing flexible placement depending on site layout, space availability, and user flow.
Yes — OCPP 1.6 support ensures interoperability with most European platforms. The charger is OCPP 2.0–ready and also supports Plug & Charge as an optional paid add-on.
Yes. The MEV charger supports Dynamic Load Management using a separate DLM HUB controller – MEVX05COREDLM.
This ensures the charger automatically adjusts its charging power so the building’s main fuse is not overloaded.
